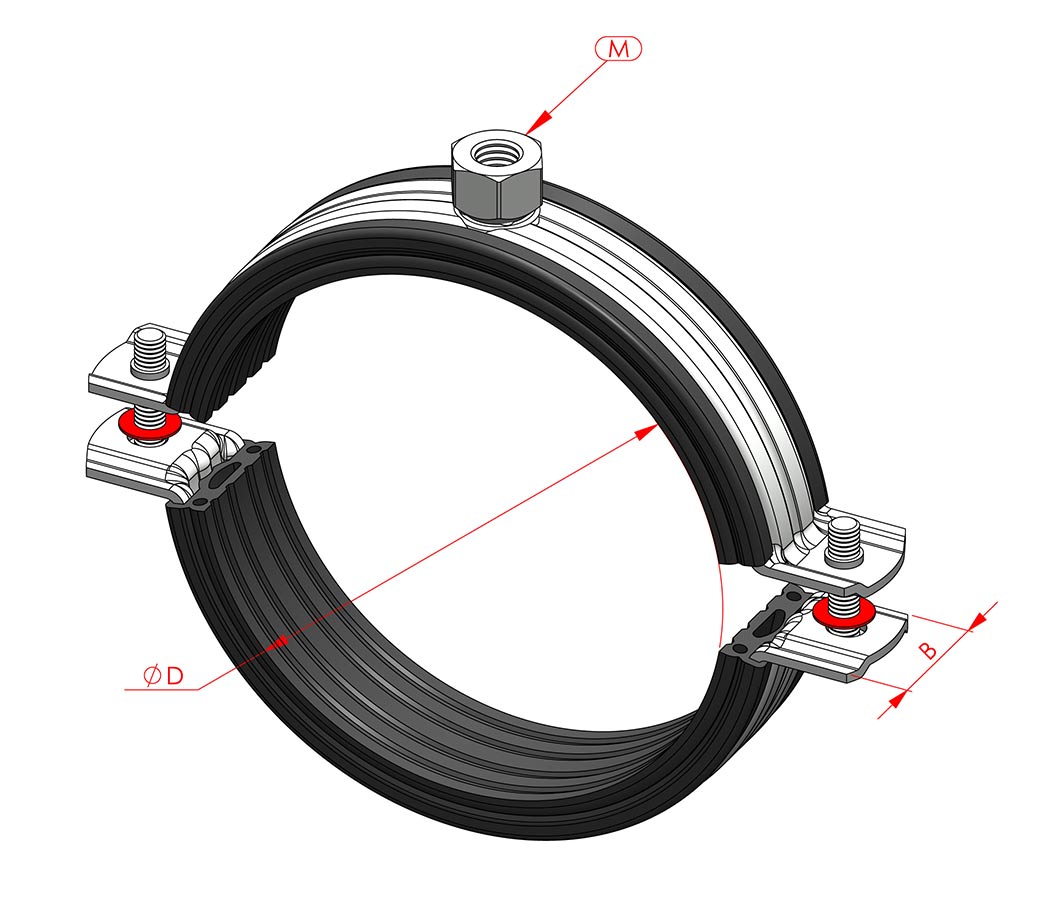

Silent Pipe Clamp with Nut (Horizontal)
PLACE OF USAGE : Used in the assembly of filthy waste water pipes.
| PRODUCT CODE | SIZE | CLAMPING RANGE (MM) | M | SxB (MM) | N | QUANTITY PER BOX | BOX WEIGHT (KG) |
|---|---|---|---|---|---|---|---|
| OEM-50SSKY | 50 | 52-59 | M6 x 25 | 1.80 x 25 | M8 | 30 | 5,010 |
| OEM-70SSKY | 75 | 75-84 | M6 x 25 | 1.80 x 25 | M10 | 30 | 5,630 |
| OEM-100SSKY | 100 | 110-119 | M6 x 25 | 1.80 x 25 | M10 | 25 | 6,360 |
| OEM-125SSKY | 125 | 119-129 | M6 x 25 | 1.80 x 25 | M10 | 25 | 6,670 |
| OEM-150SSKY | 150 | 155-163 | M6 x 25 | 1.80 x 25 | M12 | 25 | 8,300 |
| OEM-200SSKY | 200 | 197-219 | M6 x 25 | 1.80 x 25 | M12 | 25 | 9,720 |
