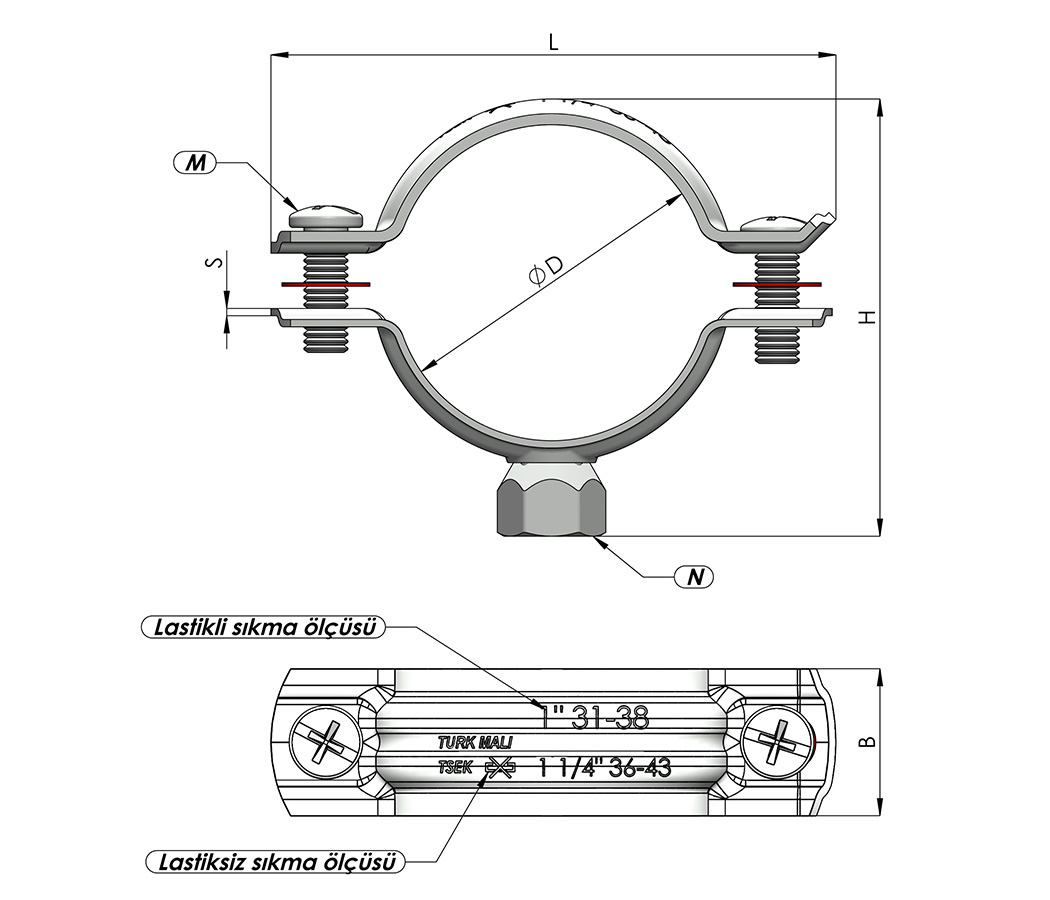

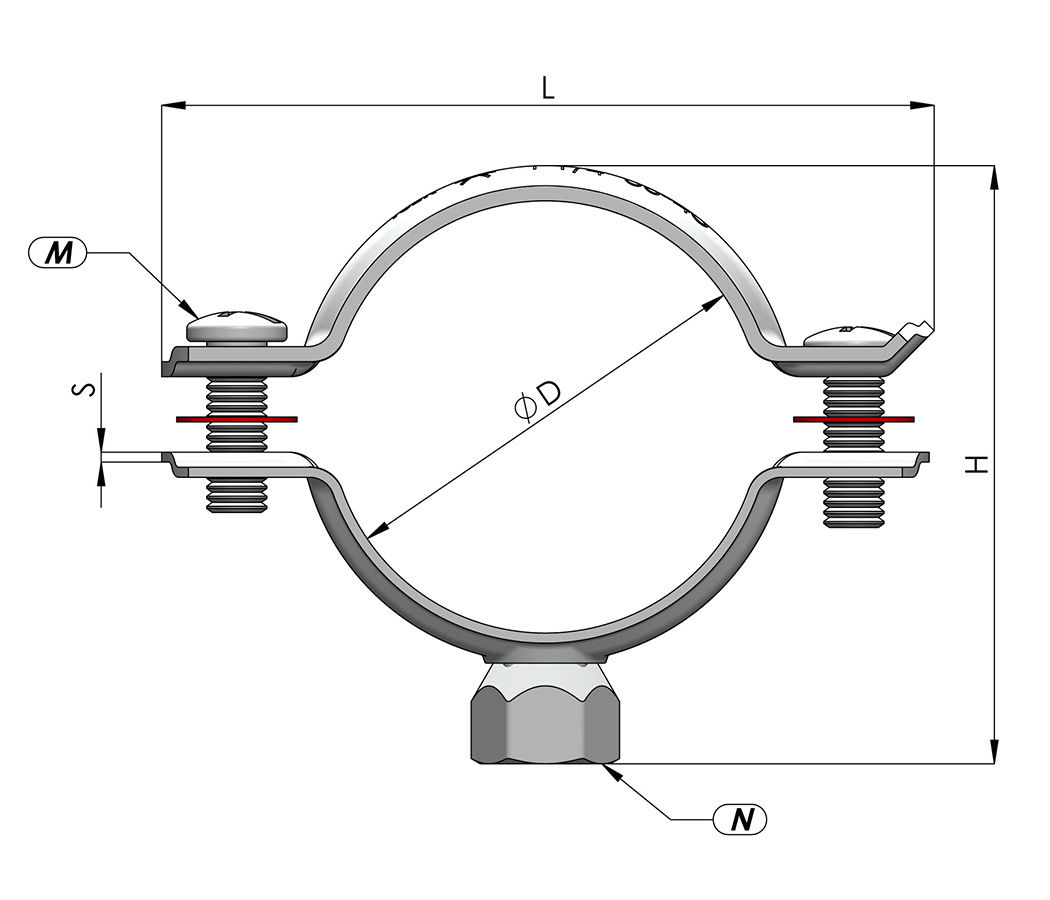

Stainless Clamp With Nut (Without Rubber)
PLACE OF USAGE : High strength is provided by the help of the dual-shaped body.
| PRODUCT CODE | SIZE | CLAMPING RANGE (MM) | M | SxB (MM) | N | QUANTITY PER BOX | BOX WEIGHT (KG) |
|---|---|---|---|---|---|---|---|
| OEM-12PKL | 1/4 | 12-16 | M6 x 15 | 1.40 x 20 | M8 | 250 | 9,850 |
| OEM-16PKL | 3/8 | 16-20 | M6 x 15 | 1.40 x 40 | M8 | 250 | 10,716 |
| OEM-20PKL | 1/2 | 20-25 | M x 15 | 1.40 x 20 | M8 | 200 | 9,253 |
| OEM-25PKL | 3/4" | 25-30 | M6 x 15 | 1.40 x 40 | M8 | 200 | 10,170 |
| OEM-31PKL | 1 | 31-38 | M6 x 15 | 1.40 x 20 | M8 | 150 | 8,657 |
| OEM-38PKL | 1 1/4 | 38-45 | M6 x 15 | 1.40 x 40 | M8 | 100 | 6,620 |
| OEM-45PKL | 1 1/2 | 45-52 | M6 x 15 | 1.40 x 20 | M8 | 100 | 7,250 |
| OEM-52PKL | 52-59 | 52-59 | M6 x 15 | 1.40 x 40 | M8 | 75 | 5,940 |
| OEM-59PKL | 2 | 59-66 | M6 x 15 | 1.40 x 20 | M8 | 75 | 6,350 |
| OEM-66PKL | 66-75 | 66-75 | M6 x 30 | 1.40 x 40 | M10 | 30 | 8,187 |
| OEM-75PKL | 2 1/2 | 75-84 | M6 x 30 | 1,80 x 25 | M10 | 30 | 5,435 |
| OEM-84PKL | 84-93 | 84-93 | M6 x 30 | 1.80 x 25 | M10 | 30 | 5,762 |
| OEM-93PKL | 3 | 93-101 | M6 x 30 | 1,80 x 25 | M10 | 25 | 5,886 |
| OEM-101PKL | 101-110 | 101-110 | M6 x 30 | 1,80 x 25 | M10 | 25 | 6,216 |
| OEM-110PKL | 110-119 | 110-119 | M6 x 30 | 1,80 x 25 | M10 | 25 | 6,550 |
| OEM-119PKL | 4 | 119-129 | M6 x 30 | 1,80 x 25 | M10 | 25 | 5,787 |
| OEM-129PKL | 129-137 | 129-137 | M6 x 30 | 1,80 x 25 | M10 | 25 | 7,925 |
| OEM-137PKL | 137-145 | 137-145 | M6 x 30 | 1,80 x 25 | M10 | 25 | 8,195 |
| OEM-145PKL | 5 | 145-155 | M6 x 30 | 1,80 x 25 | M10 | 25 | 7,600 |
| OEM-155PKL | 155-163 | 155-163 | M6 x 30 | 1,80 x 25 | M10 | 25 | 8,205 |
| OEM-163PKL | 6 | 163-172 | M6 x 30 | 1,80 x 25 | M12 | 25 | 8,506 |
| OEM-197PKL | 197-219 | 197-219 | M6 x 30 | 1,80 x 25 | M12 | 15 | 9,857 |
| OEM-207PKL | 8 | 207-219 | M6 x 30 | 1,80 x 25 | M12 | 15 | 6,350 |
